Precision Laser Cutting Capabilities

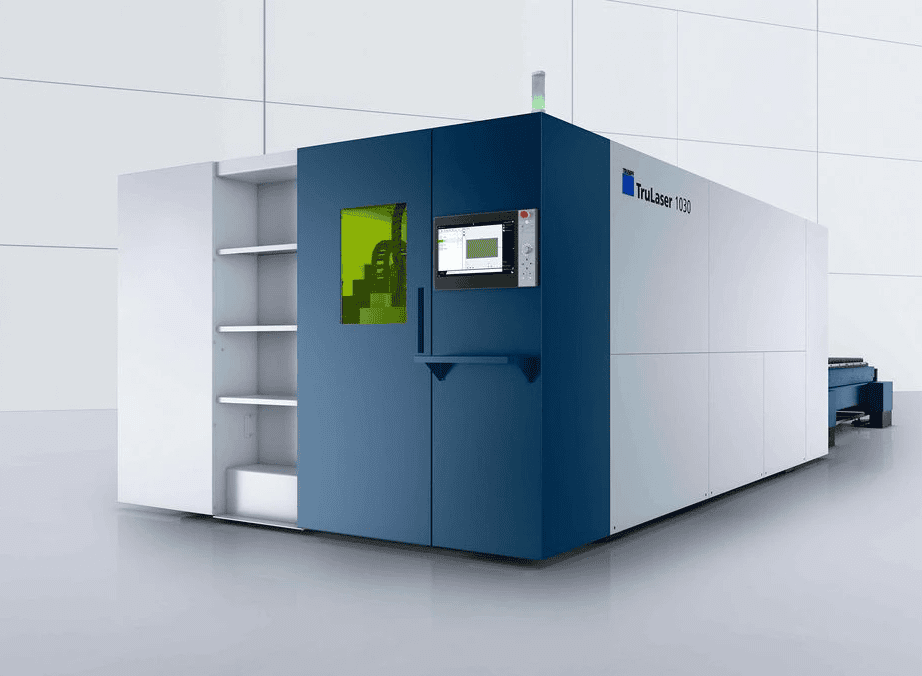

Our TruLaser 1030 runs on CNC programming & nesting software, and is capable of producing accurate, precise cuts with the following materials and measurements:
- Max Sheet Size 120” x 60”
Material Capabilities
- (AL) Aluminum: .508mm – 14.99mm _Inch Conversion: .02in – .59in
- (BR) Brass: .508mm – 6.35mm _ Inch Conversion: .02in – .25in
- (CO) Copper: .508mm – 6.35mm _ Inch Conversion: .02 – .25in
- (ES) Electrogalvanized Mild Steel: .508mm – 3.048mm _ Inch Conversion: .02in – .12in
- (HS) Mild Steel, Hot Galvanized: .508mm – 4.064mm _ Inch Conversion: .02in – .16in
- (OS) Mild Steel w/Oxidized Surfaces: 2.032mm – 20.07mm _ Inch Conversion: .08in – .79in
- (SC) Stainless Steel Coated: .508mm – 4.064mm _ Inch Conversion: .02in – .16in
- (SS) Stainless Steel: .508mm – 14.99mm _ Inch Conversion: .02in – .59in
- (ST) Mild Steel: .508mm – 20.07mm _ Inch Conversion: .02in – .79in
Additional Finishing Services
BENDING • WELDING • PACKAGING
Our team is also equipped to bend, weld, and package the materials you need for your project. Our TrueBend Series 3000 machine is the fastest bending machine in their class with a complete clamping tool flexibility.
- 8’ of 11 gauge steel
- 10’ of 12 gauge through 16 gauge steel
- Acute angles to 30 degrees – 4.5′ / 1/4″ / 304SS to 45º
- 90 degree flanges as small as 9/16”
Contact us today to learn how Steelway can help supplement your production and help you complete your manufacturing project on-time and on-budget.
